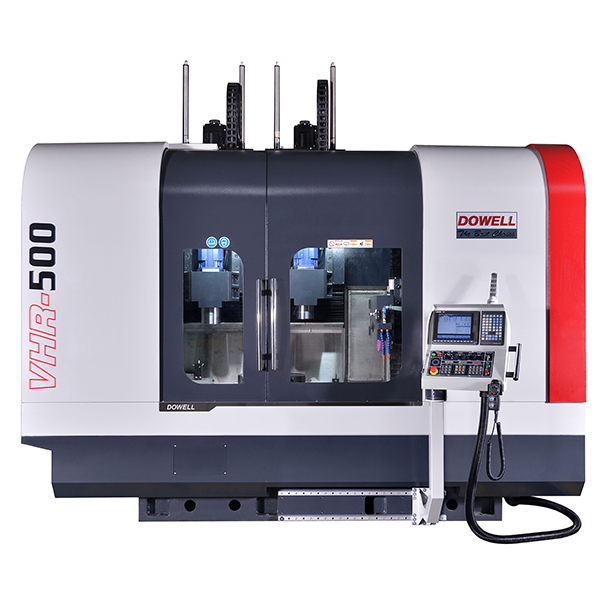

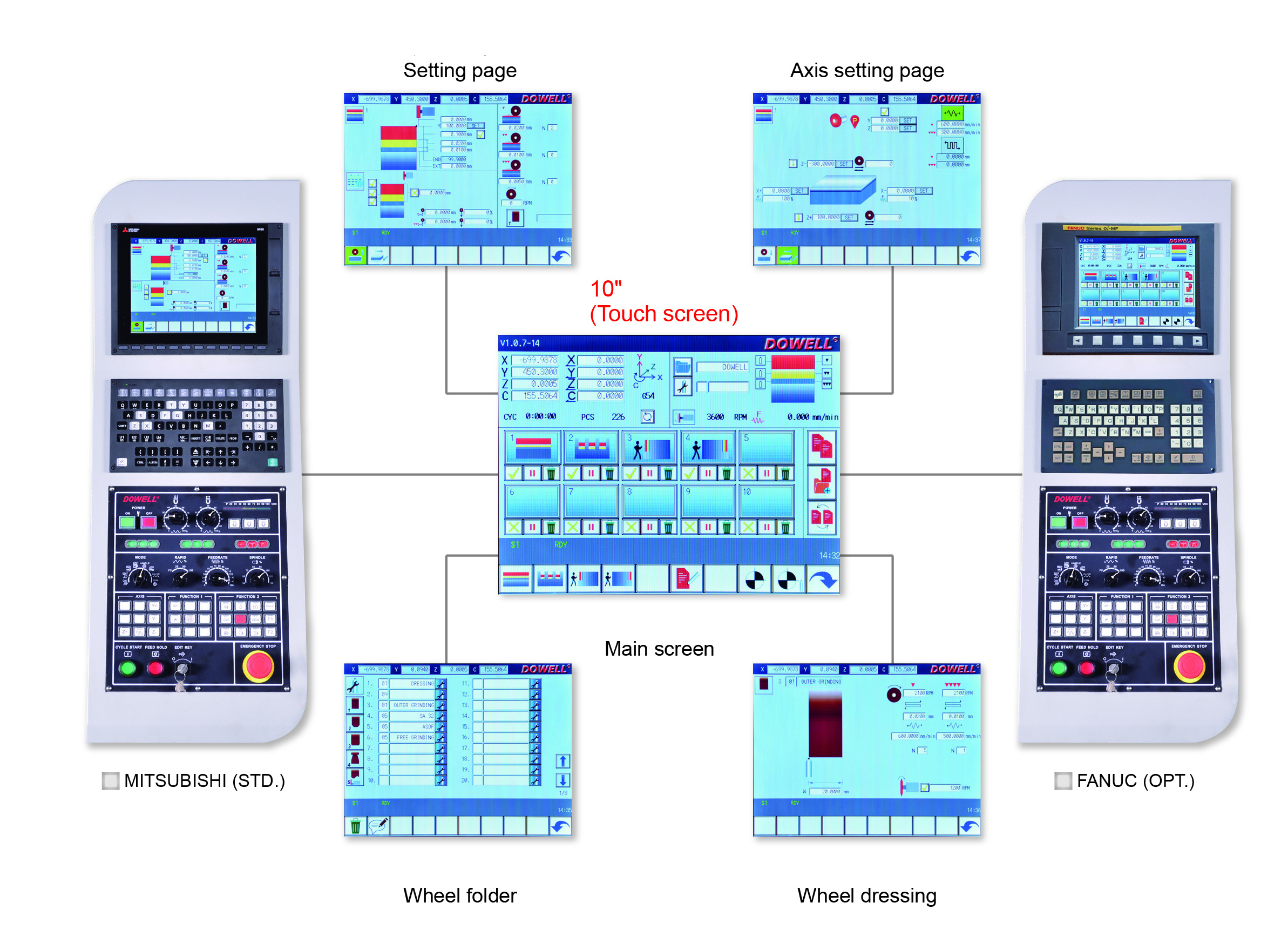

High precision rotary grinders with Mitsubishi or Fanuc CNC color touch screen display. Our proprietary CNC conversational program is easy for operators at almost any level of experience. Fully open G and M code for custom programing, Servo feeds with precise programable auto feed and MPG handwheel. The machine structure uses high quality Meehanite class FC cast iron. Auto lubrication to ball screws, linear ways and Box‐ways.

Many options available: electromagnetic chucks, custom fixturing, online wheel balancer, coolant filtration, and Full machine enclosures. Uncompromised with maximum HP ratings, rigidity, and accuracy for best production results.

Capacities

TableGrind MotorGrind Wheel
500mm10hp Horizontal355mm
3hp Vertical ID65 ˜ 110mm
5hp Vertical OD205mm
600mm10hp Horizontal405mm
3hp Vertical ID65 ˜ 110mm
5hp Vertical OD205mm
