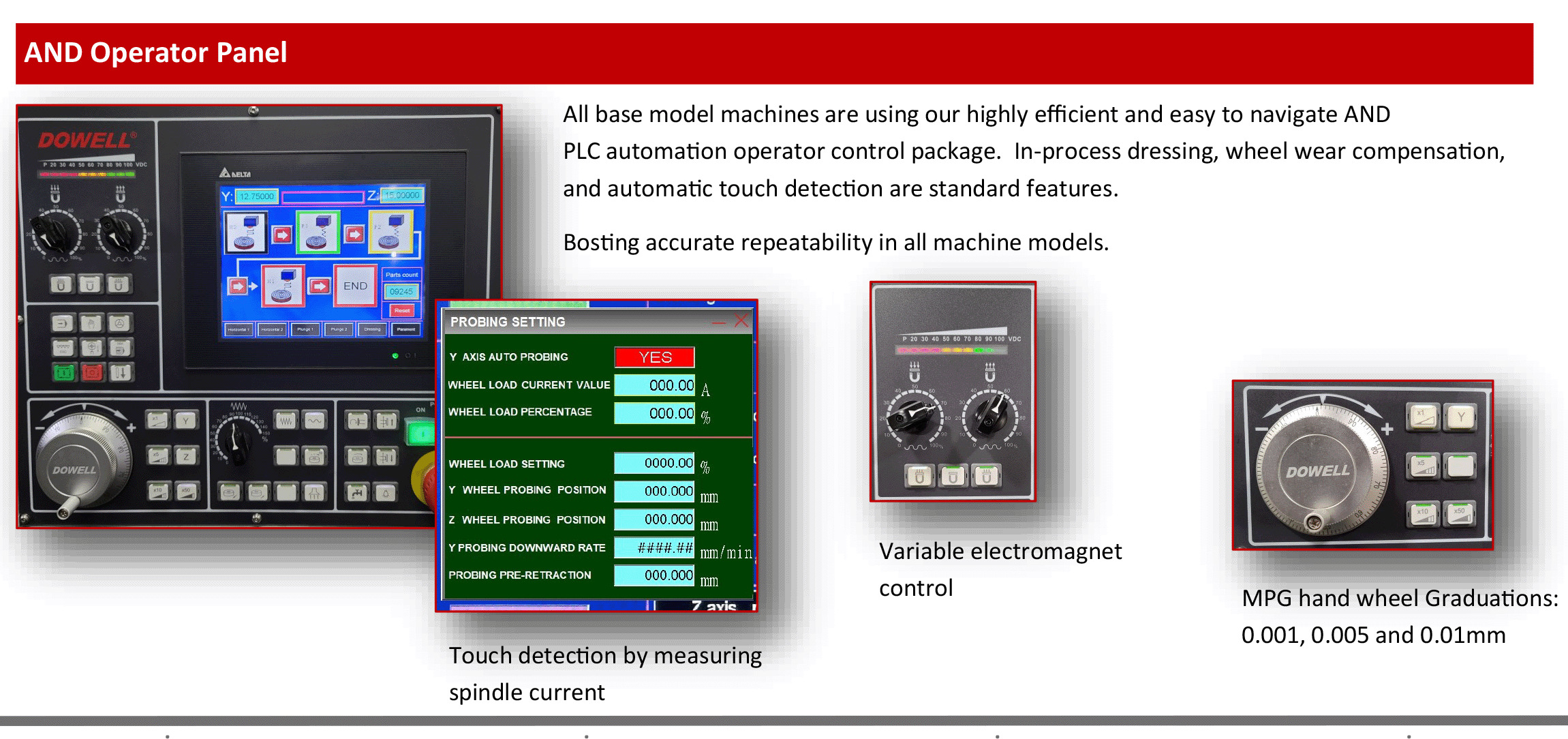

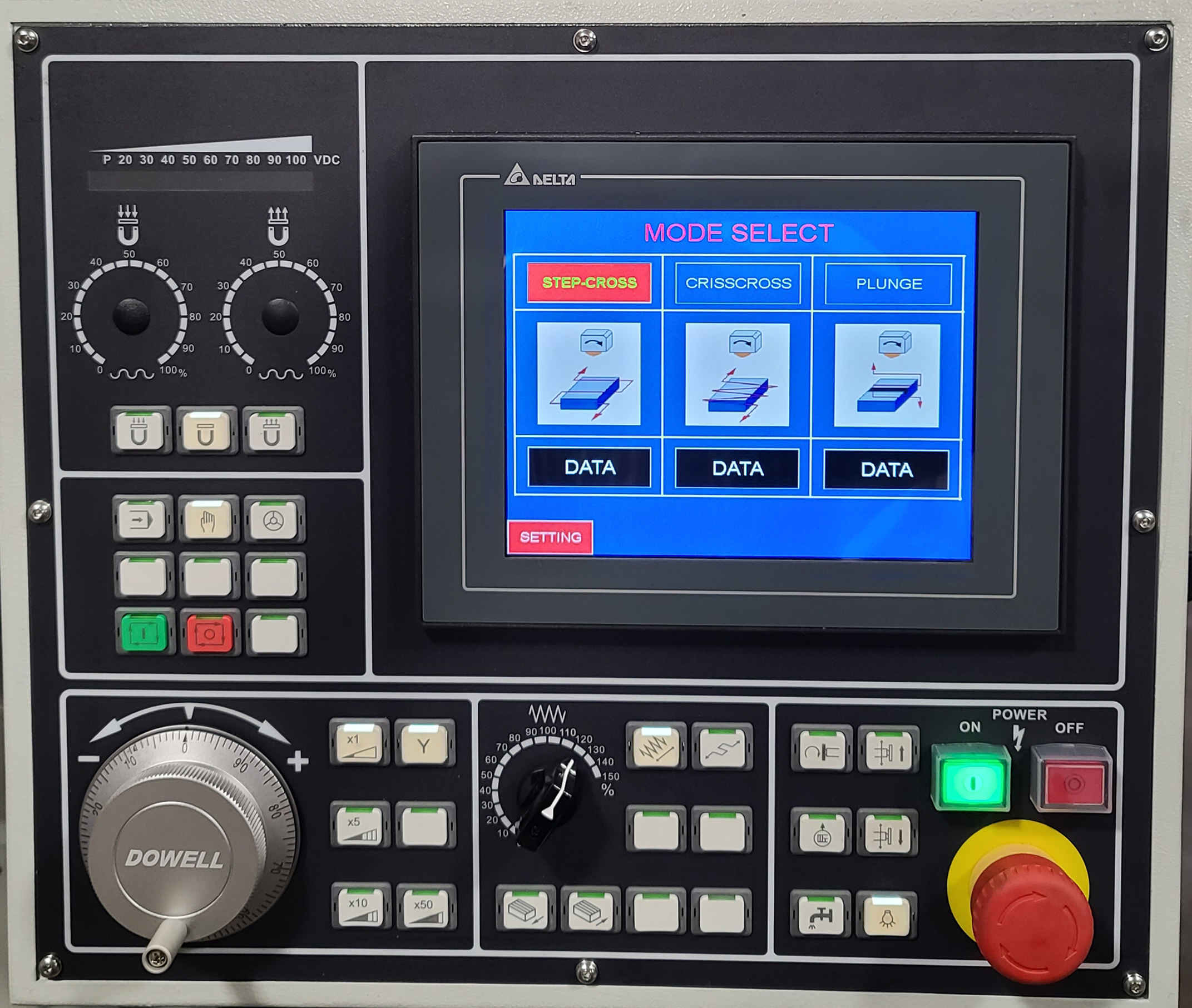

High precision rotary face surface grinders with AND color LCD touch screen. The AND control package is easy for operators at any level of experience. Mitsubishi servo feed with precise auto feed and MPG handwheel. The machine structure uses high quality Meehanite class FC cast iron. Auto lubrication to ball screws, linear ways and V‐ways.

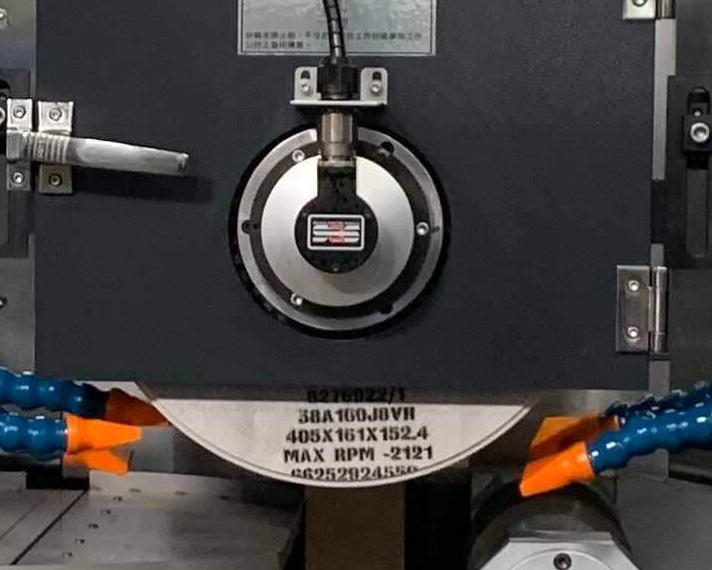

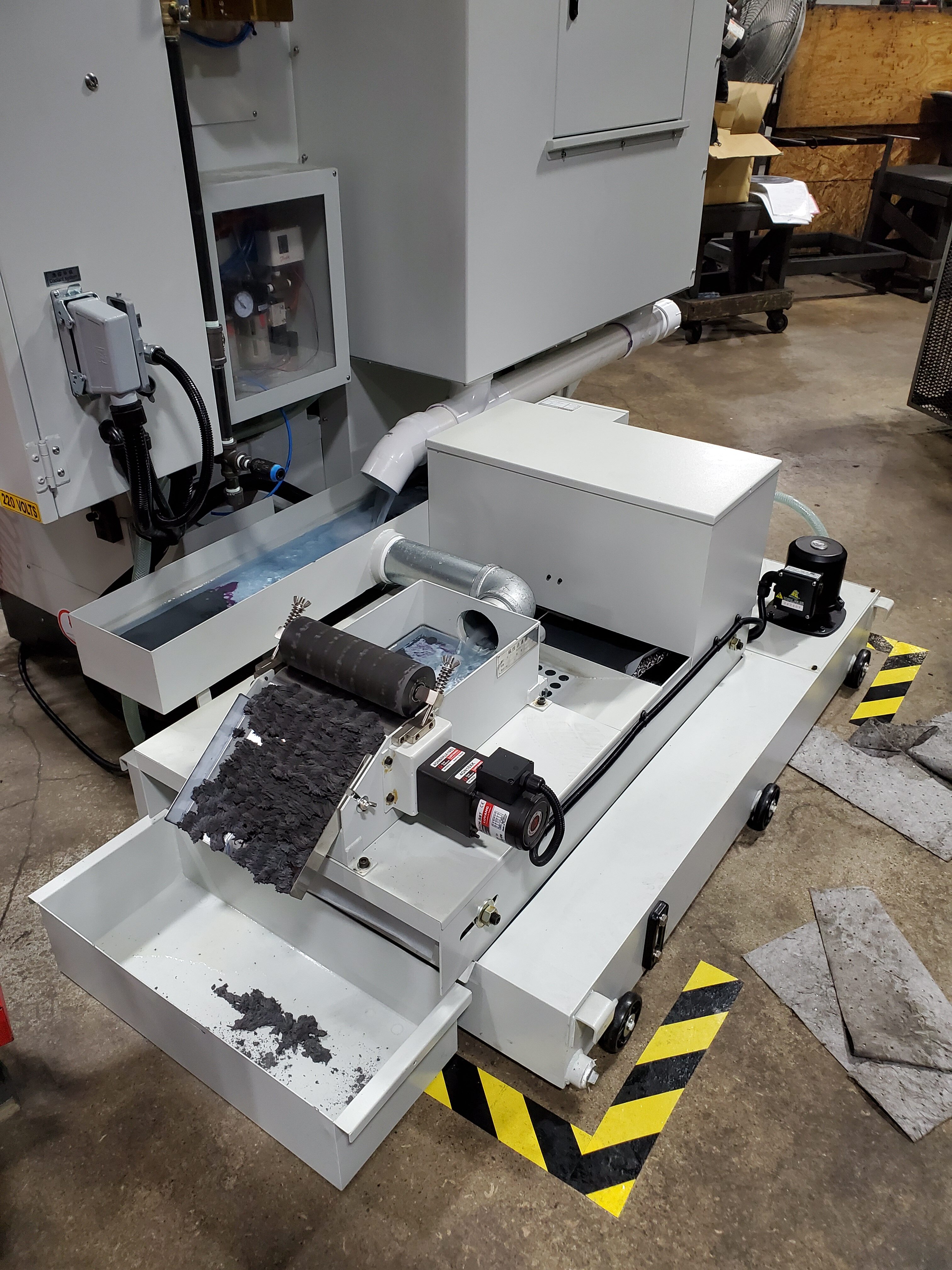

Many options available: electromagnetic chucks, online wheel balancer, automatic in process dressing, coolant filtration and Full machine enclosures. Uncompromised with maximum HP ratings, rigidity, and accuracy for best production results.

Capacities

TableGrind MotorGrind Wheel
200mm3 hp180mm
300mm3 hp180mm
400mm10 hp335mm
500mm10 hp335mm
600mm20 hp335mm
800mm25 hp405mm
1000mm25 hp500mm
1200mm25 hp500mm
1500mm30 hp500mm
